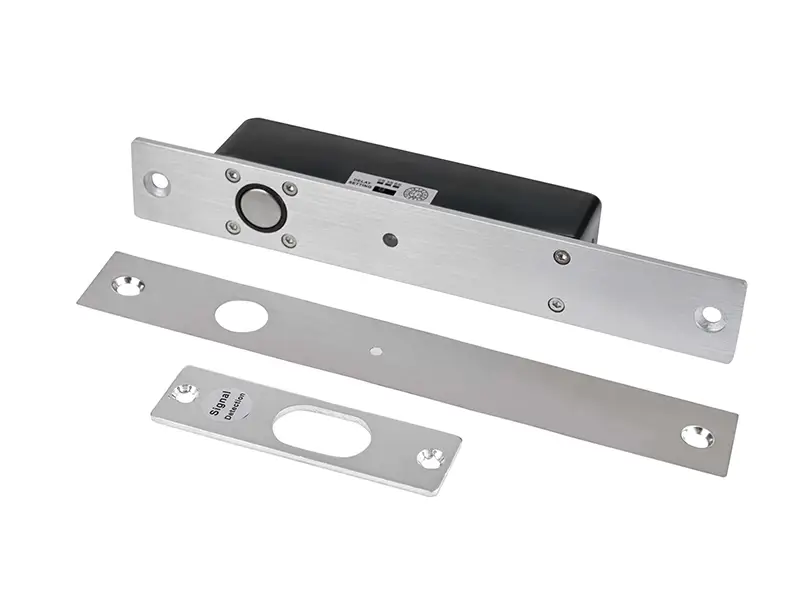

The YGS 2-wire feedback electric bolt lock
Product description
YGS-CC2S is a 2-wire feedback electric bolt lock designed for high-standard access control systems. Its "2-wire" configuration provides advanced functionality and integration capabilities far beyond basic locking mechanisms, enabling seamless interoperability with access control panels, alarm systems, and other security devices for intelligent management.
It's not just a lock—it is an intelligent door status sensor. Its sophisticated 5-wire design transforms basic locking into an active security solution that can be monitored and integrated. Choosing the YGS-C25S means investing in higher-level security, management efficiency, and intelligent automation.
Product Features
CC2S
Broad Applicability
CC2S two-line low temperature band delay type electric plug lock, can be used forwooden door, glass door, metal door, fire door, is a lock suitable for low temperatureenvironment, can be used with access control system, building intercom and other equipment.
Product parameters
|
Parameter Description |
|||
|
Working current |
Start 1A±10%, continuous work 150mA±10% |
Signal output |
COM/NO |
|
Panel dimensions |
Length 204x width 30x thickness 3 (mm) |
Delay function |
0-3-6 seconds adjustable |
|
Decorative panel dimensions |
Length 208x width 32x thickness 0.7 (mm) |
Applicable door type |
wood door, glass door, metal door, fire door |
|
Embedded dimensions |
Length 126x width 25x thickness 32 (mm) |
Box size |
255*58*60MM |
|
Keyhole size |
length 14mm diameter 15mm |
External box dimensions |
39.5*28*32.5CM |
|
Working voltage |
DC10-24V |
Packaging size |
30 pieces per box |
