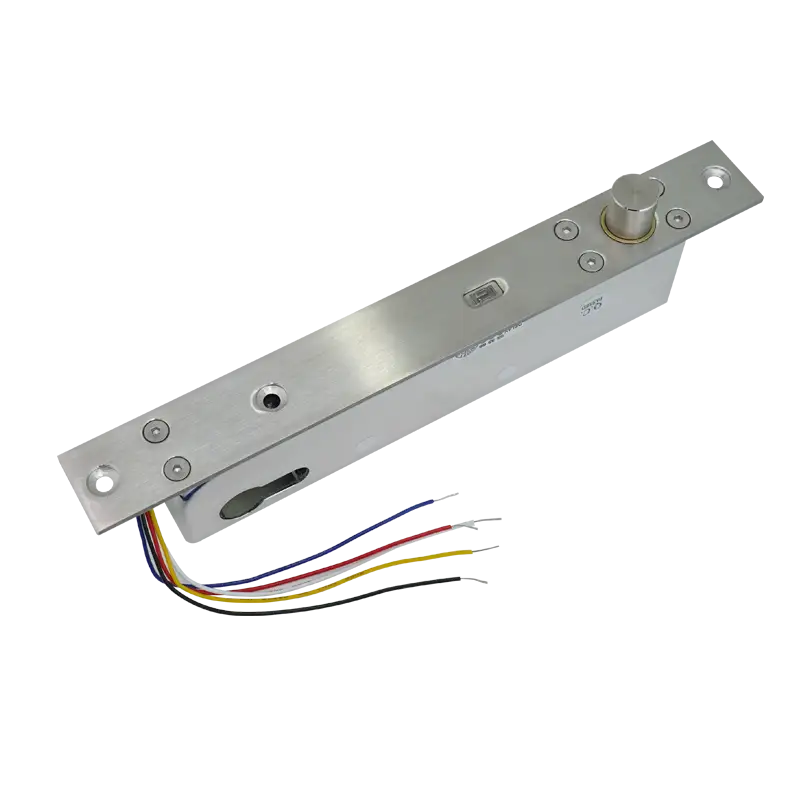

5-wire electric bolt lock electric strike lock YGS-CY5S
Electric bolt lock with deadbolt
This YGS-CL5S combines electromagnetic and mechanical lock mechanisms. It features a built-in power cord, exit switch cord, and door magnetic cord to ensure efficient operation of the electric bolt lock. The mortise and bolt are made of 304 stainless steel and include delayed locking, signal feedback, and emergency unlocking functions, making it suitable for various security scenarios. It can be used with access control systems for electric control and also supports mechanical key unlocking. The bolt extension/retraction lifespan is ≥6000 cycles without failure.
Product Features
Broad Applicability
Suitable for diverse high-security environments including office glass doors, banks, data centers, server rooms, hospitals, schools, and any access point requiring door status monitoring.
Product parameters
|
Parameter Description |
|
|
function Introduction |
five-line feedback type electric plug lock, 2 power lines, 1 door switch line, 2 door magnetic feedback lines COM, NO |
|
Safety type |
automatic lock when power is cut off |
|
Panel dimensions |
length 204x width 30x thickness 3 (mm) |
|
Panel dimensions |
Length 208 x width 32 x thickness 0.7 (mm) |
|
Embedded dimensions |
length 126x width 25x thickness 35 (mm) |
|
Keyhole size |
length 14mm diameter 15mm |
|
Working voltage |
DC10V-DC24V |
|
Working current |
Start 1A±10% continuous working 150mA±10% |
|
Delay function |
0-3-6 seconds adjustable |
|
Applicable door type |
wood door, glass door, metal door, fire door |
|
Box size |
255 X 58 X 60MM |
|
External box dimensions |
39.5*28*32.5cm |
|
Packaging size |
30 pieces per box |
|
Manufacturing Information |
|
|
Delivery |
7–30 days for samples; 4–8 weeks for bulk production |
|
Quality control process |
(OQC)Incoming Quality Control (IQC)、 In-Process Quality Control (IPQC) 、Final Quality Control (FQC)、 Outgoing Quality Control (OQC) |
|
MOQ |
Typically 500–1,000 units for standard OEM orders (flexible for long-term partners). |
| Product Certification | |||||
|
Certification |
CE-LVD |
CE-EMC |
ROHS |
||
|
Customer certification requirements |
1. Existing certification: The certified products can be converted into the brand and model of the customer by the certification center through the form of filing. |
||||
|
New certification: The customer proposes the certification type, and we provide samples to apply for the certification process to the certification center. (the following certifications can be met: CE, ROHS, WEEE, CB, FCC, REACH SVHC, etc. |
|||||
