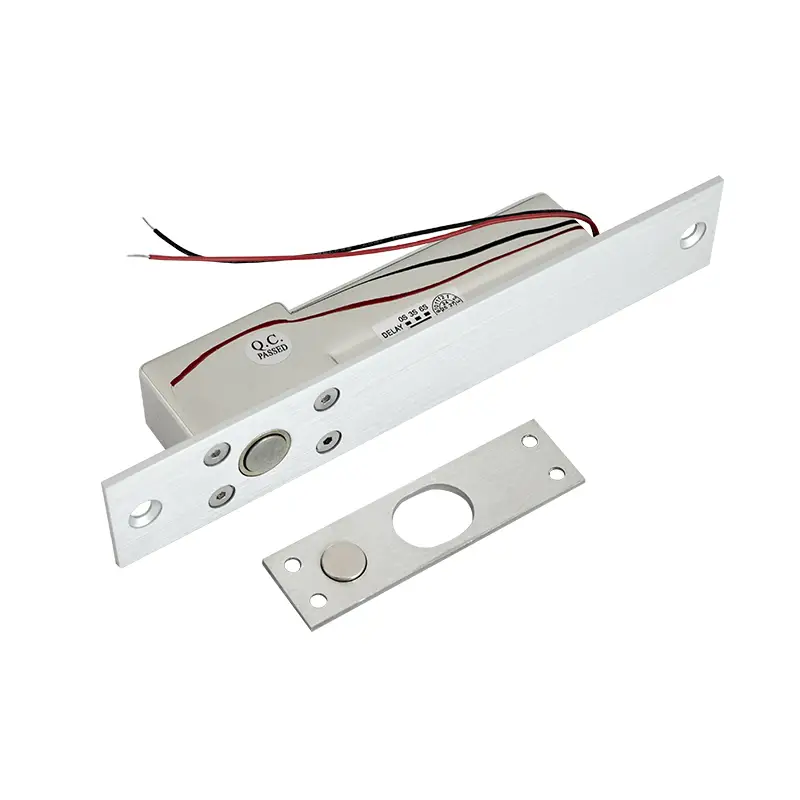

YGS 2- wire electric bolt lock electric strike lock YGS-CY2S
Integrated electric bolt lock
The YGS-CY2S integrated electric bolt lock combines the mortise, access controller, and other components into a complete access control system, offering convenient and integrated installation. The mortise is made of zinc alloy with a chrome-plated finish, making it corrosion-resistant and rust-proof. It also features delayed closing and door magnetic signal feedback functions.
Product Features
CY2S
Broad Applicability
CC2S two-line low temperature band delay type electric plug lock, can be used forwooden door, glass door, metal door, fire door, is a lock suitable for low temperatureenvironment, can be used with access control system, building intercom and other equipment.
Product parameters
|
Parameter Description |
|||
|
Working current |
Start 1A±10%, continuous work 150mA±10% |
Signal output |
COM/NO |
|
Panel dimensions |
Length 204x width 30x thickness 3 (mm) |
Delay function |
0-3-6 seconds adjustable |
|
Decorative panel dimensions |
Length 208x width 32x thickness 0.7 (mm) |
Applicable door type |
wood door, glass door, metal door, fire door |
|
Embedded dimensions |
Length 126x width 25x thickness 32 (mm) |
Box size |
255*58*60MM |
|
Keyhole size |
length 14mm diameter 15mm |
External box dimensions |
39.5*28*32.5CM |
|
Working voltage |
DC10-24V |
Packaging size |
30 pieces per box |
