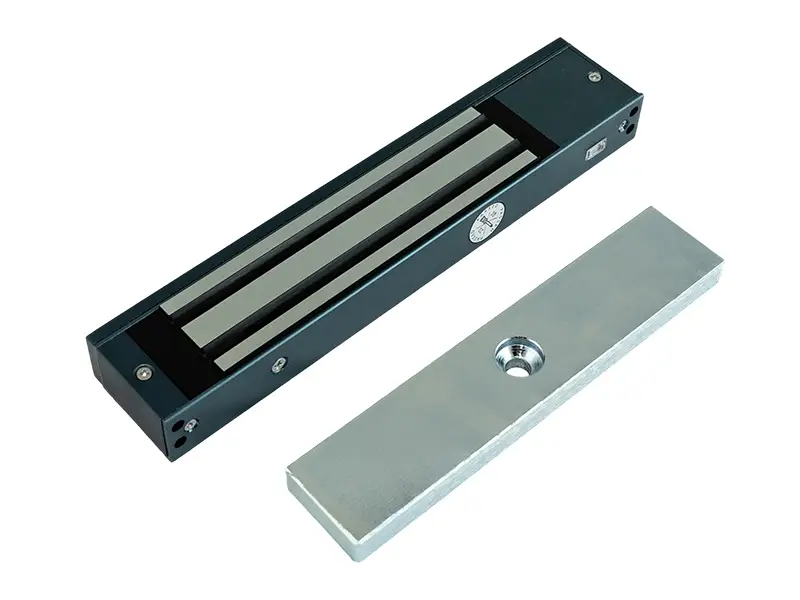

YGS Water-proof Electronagnetic Lock with single Door(300(G) 1

YGS Water-proof Electronagnetic Lock with single Door(300(G) 2

YGS Water-proof Electronagnetic Lock with single Door(300(G) 3

YGS Water-proof Electronagnetic Lock with single Door(300(G) 4

YGS Water-proof Electronagnetic Lock with single Door(300(G) 5

YGS Water-proof Electronagnetic Lock with single Door(300(G)

This product supports 12V/24V DC power supply and boasts a maximum tensile strength of up to 300 kilograms. It also offers an optional signal feedback function with synchronous output via built-in sensors. Moreover, the signal output function, tensile strength, and door installation adaptation solutions can be tailored to specific requirements.

Warranty:

1 year

Inquiry

Write a Review

Product description

The YGS-DW series waterproof electromagnetic lock features a specially designed anti-residual magnetic structure and incorporates IP65-rated core waterproofing technology. Its aluminum housing is crafted from high-strength alloy material, subjected to anodized hardening treatment, and equipped with a waterproof silicone sealing ring and a waterproof cable gland interface, offering exceptional waterproof, corrosion-resistant, and rust-proof properties.

Product Features

YGS Water-proof Electronagnetic Lock with single Door(300(G) 7

Design Specifically for Anti-Residual Magnetism

The YGS-DF electromagnetic lock Incorporates a built-in reverse current protection device; effectively eliminates unlocking delays or jams caused by the residual magnetic effect after a power outage.

YGS Water-proof Electronagnetic Lock with single Door(300(G) 8

2/24V DC Power Supply with Dual Voltage Support

Dual voltage 12/24V DC power supply: supports 12/24V DC dual mode power supply; significantly reduces the compatibility requirements of the power supply environment and reduces the voltage configuration restrictions.

Tension stability

The combination of high magnetic permeability silicon steel sheet and NdFeB magnet, high quality materials, perfect magnetic structure and excellent processing technology ensure the stability of pull force.

YGS Water-proof Electronagnetic Lock with single Door(300(G) 10

Advanced Waterproofing for the Core

integrated with IP65 core waterproof technology, its aluminum shell is made of high strength alloy material, anodized hard treatment, equipped with waterproof silicone rubber sealing ring and waterproof cable interface, with excellent waterproof, corrosion resistance and rust prevention performance. Dual voltage 12/24V DC power supply: supports 12/24V DC dual mode power supply; significantly reduces the compatibility requirements for the power supply environment, reduce voltage configuration restrictions

YGS Water-proof Electronagnetic Lock with single Door(300(G) 11

Signal display

Designed for high-security environments and access control systems, this system uses built-in sensors to detect latch position status and simultaneously outputs dual-state signals (locked/unlocked). Compatible with access control systems, it triggers instant alarms when detecting improper locking or abnormal external tampering, enabling real-time remote monitoring and security-linked protection for door integrity.

Product Display

DW300ML With signal

DW300M Without signal

Broad Applicability

The YGS-DW Single-door electromagnetic lock is ideal for sliding doors in shopping malls, fire escape routes, and high-suction applications. Its double-sided slotted lock requires two sets of suction plates for installation, making it compatible with a variety of door types. Its IP65-rated core waterproof design ensures long-term stable operation of its current and electromagnetic conversion functions in open, humid environments and under high-frequency use. Its emergency door opening function meets the requirements of fire escapes for rapid and secure linkage. A built-in backflow protection device effectively protects the on-site power grid and user equipment.

1 (12)

2 (11)

3 (13)

Product parameters

Product Specifications
Operating voltage	Working current）	Pull	Size	Weight	Pieces per Carton、PCS/CTN	Carton size	Product Color
DC 12V	480mA±5%	280kg（617 Ib）±10%	27(mm)Lock body: 2384727mm 13(mm)Iron Block: 1823813mm	24.9KG	12pcs	290270197	customized according to requirements
DC 24V	240mA±5%

Material Characteristics
	Electromagnetic Lock case	Electromagnetic Lock Mounting Strip	Electromagnetic Lock Magnet	Electromagnetic Lock Coil	Electromagnetic Lock Suction Plate
Material	Aluminum alloy/6063A bar	Aluminum alloy/6063A bar	Silicon steel sheet (0.5 mm single sheet)	Copper	Iron
Surface treatment	Anodized brushed silver	Anodized brushed silver	Electroplated environmentally friendly zinc	/	Electroplated environmentally friendly zinc

Manufacturing Information
Delivery	7–30 days for samples; 4–8 weeks for bulk production
Quality control process	(OQC)Incoming Quality Control (IQC)、 In-Process Quality Control (IPQC) 、Final Quality Control (FQC)、 Outgoing Quality Control (OQC)
MOQ	Typically300–1,000 units for standard OEM orders (flexible for long-term partners).

Product Certification
Certification	CE-LVD	CE-EMC	ROHS
Customer certification requirements	1. Existing certification: The certified products can be converted into the brand and model of the customer by the certification center through the form of filing.
	2. New certification: The customer proposes the certification type, and we provide samples to apply for the certification process to the certification center. (the following certifications can be met: CE, ROHS, WEEE, CB, FCC, REACH SVHC, etc.

Get in touch with us

We warmly welcome OEM partners and industrial users who require customized application for special project requirement.
