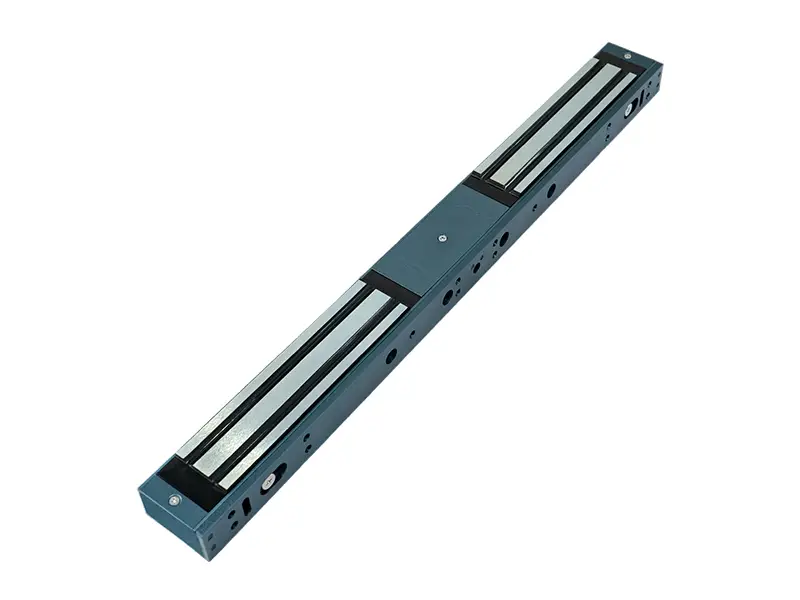

YGS High Strength Water-proof Electromagnetic Lock for Double Door

This product supports a 12V/24V DC power supply and has a maximum tensile strength of 300 kg. It offers optional signal feedback functionality through integrated sensors for synchronized output. Customizable signal output functions, tensile strength specifications, and door installation compatibility solutions can be tailored to specific requirements.

Warranty:

1 year

Inquiry

Write a Review

Product description

The YGS-DW series waterproof electromagnetic lock boasts a specialized anti-residue magnetic structure design, featuring IP65-rated core waterproof technology. Its aluminum casing, constructed from high-strength alloy material with an anodized hardening treatment, is equipped with waterproof silicone sealing rings and cable interfaces, ensuring superior waterproof, corrosion-resistant, and rust-proof performance.

Product Features

YGS High Strength Water-proof Electromagnetic Lock for Double Door 8

The Anti-pollution magnetic structure

The YGS-DF electromagnetic lock features an anti-residual magnetic structure design and utilizes AB epoxy packaging to achieve physical isolation. The mechanical design of the spring and top pressure piece ensures immediate unlocking when the power is cut off, making it ideal for emergency scenarios such as fire escape.

Remote control

Supports linkage with fire alarm system to realize synchronous signal alarm, and supports automatic unlocking of alarm triggering. The control system continuously monitors the status of door lock in real time.

YGS High Strength Water-proof Electromagnetic Lock for Double Door 10

Water-proofing techniques

The water-proofing techniques employed in this electromagnetic lock are of high standard. Firstly, a special sealing mechanism is integrated around the lock body, effectively preventing water from seeping in through any gaps. Secondly, the materials used in the construction of the YGS electromagnetic lock have excellent water-repellent properties. These materials not only resist water absorption but also form a protective barrier against moisture. Moreover, the design of the lock includes drainage channels. In the unlikely event that water does manage to get inside, these channels will guide the water out, ensuring that the internal components remain dry and the lock functions properly.

Strong and steady pull

The Safety and Endurance features of the YGS waterproof electromagnetic lock ensure its reliable performance even in harsh conditions. It is designed with high-quality materials that provide excellent resistance to corrosion, moisture, and extreme temperatures. This durability guarantees long-term operation without compromising safety, making it an ideal choice for environments where reliability is paramount. Additionally, the lock undergoes rigorous testing to meet international safety standards, ensuring it can withstand emergencies and protect both personnel and property effectively.

Product Display

DW300MDL With signal

DW300MD Without signal

Broad Applicability

The YGS-DW double-door electromagnetic lock is specifically engineered for commercial sliding doors, fire escape routes, and high-torque applications. Featuring a dual-side groove structure, it requires two sets of magnetic plates for installation, ensuring compatibility with various door types. Its core waterproof design meets IP65 protection standards, guaranteeing long-term stable operation of electrical conduction and electromagnetic conversion functions in open, humid environments and high-frequency usage scenarios. In emergency situations, the rapid door-opening feature meets safety requirements for high-security interlocked areas like fire exits. The built-in reverse current protection device effectively safeguards both the on-site power grid and user equipment.

1 (12)

2 (11)

3 (13)

Product parameters

Product Specifications
Operating voltage	Working current	Pull	Size	Weight	Pieces per Carton、PCS/CTN	Carton size	Product Color
DC 12V	960mA±5%	280kg（617 Ib）±10%	lock body: 5004727mm Iron Block: 1823813mm	24.8KG	6pcs	532220137	customized according to requirements
DC 24V	480mA±5%

Material Characteristics
	Electromagnetic Lock case	Electromagnetic Lock Mounting Strip	Electromagnetic Lock Magnet	Electromagnetic Lock Coil	Electromagnetic Lock Suction Plate
Material	Aluminum alloy/6063A bar	Aluminum alloy/6063A bar	Silicon steel sheet (0.5 mm single sheet)	Copper	Iron
Surface treatment	Anodized brushed silver	Anodized brushed silver	Electroplated environmentally friendly zinc	/	Electroplated environmentally friendly zinc

We meticulously select and validate all source materials—from high-grade electrical steel for optimal magnetic flux to corrosion-resistant alloys and engineering polymers—ensuring superior durability, performance, and compliance with stringent international safety and environmental standards.

Manufacturing Information
Delivery	7–30 days for samples; 4–8 weeks for bulk production
Quality control process	(OQC)Incoming Quality Control (IQC)、 In-Process Quality Control (IPQC) 、Final Quality Control (FQC)、 Outgoing Quality Control (OQC)
MOQ	Typically300–1,000 units for standard OEM orders (flexible for long-term partners).

Crafted through a rigorous quality management system, our electromagnetic locks are produced under stringent process controls—from precision manufacturing to final validation testing—ensuring unwavering reliability and compliance with international standards.

Product Certification
Certification	CE-LVD	CE-EMC	ROHS
Customer certification requirements	1. Existing certification: The certified products can be converted into the brand and model of the customer by the certification center through the form of filing.
	2. New certification: The customer proposes the certification type, and we provide samples to apply for the certification process to the certification center. (the following certifications can be met: CE, ROHS, WEEE, CB, FCC, REACH SVHC, etc.

Certification: Our electromagnetic locks are engineered to comply with major international standards (e.g., CE, FCC, CCC) and We provide comprehensive support—including documentation, testing samples, and technical collaboration—to ensure seamless compliance with your specific regional and project-specific certification needs.

Get in touch with us

We warmly welcome OEM partners and industrial users who require customized application for special project requirement.
