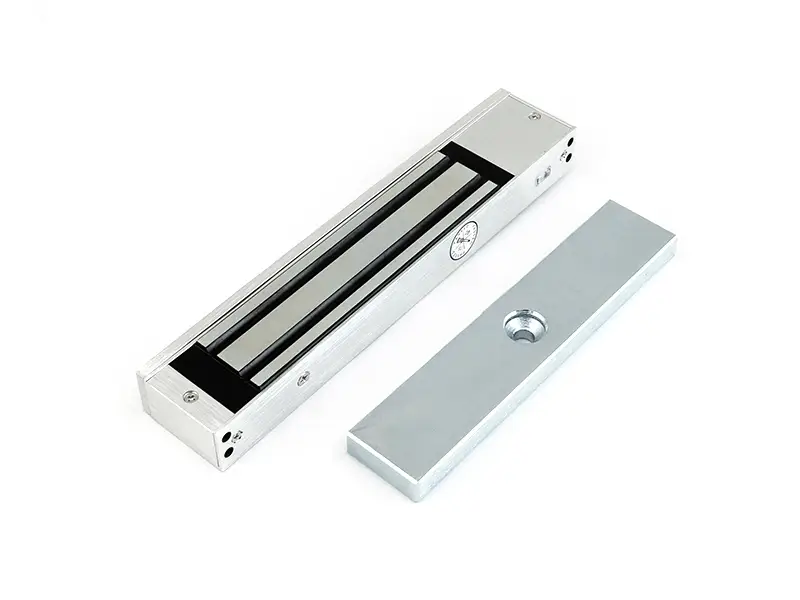

YGS Waterproof Electromagnetic Magnetic Lock with Single Door-1763623998664378 1

YGS Waterproof Electromagnetic Magnetic Lock with Single Door-1763623998664378 2

YGS Waterproof Electromagnetic Magnetic Lock with Single Door-1763623998664378 3

YGS Waterproof Electromagnetic Magnetic Lock with Single Door-1763623998664378 4

YGS Waterproof Electromagnetic Magnetic Lock with Single Door-1763623998664378

Its aluminum housing is constructed from a high-strength alloy with an anodized hardening treatment and equipped with a waterproof silicone seal and waterproof cable connector, offering excellent waterproof, corrosion, and rust resistance.

Warranty:

1 year

Inquiry

Write a Review

Product description

The YGS-DW Singel door series waterproof electromagnetic lock features a special anti-residual magnetism design and integrates core IP65-rated waterproof technology. Its aluminum housing is constructed from a high-strength alloy with an anodized hardening treatment and equipped with a waterproof silicone seal and waterproof cable connector, offering excellent waterproof, corrosion, and rust resistance.

It supports 12V/24V DC power supply, has a maximum tensile strength of 258 kg, and supports an optional signal feedback function with synchronous output via a built-in sensor. Customizable signal output functionality, tensile strength, and door installation options are available.

Product Features

YGS Waterproof Electromagnetic Magnetic Lock with Single Door-1763623998664378 6

Special Anti-Residual Magnetism Structure

Built-in reverse current protection effectively eliminates unlocking delays or jamming caused by residual magnetism after power failure.

Stability of pulling force

The combination of high magnetic permeability silicon steel sheet and NdFeB magnet, high-quality materials, perfect magnet structure and excellent processing technology ensure the stability of pulling force.

YGS Waterproof Electromagnetic Magnetic Lock with Single Door-1763623998664378 8

Dual Voltage 12/24V DC Power Supply

Supports 12/24V DC dual-mode power supply, significantly reducing power supply compatibility requirements and voltage configuration restrictions.

YGS Waterproof Electromagnetic Magnetic Lock with Single Door-1763623998664378 9

Core Waterproof Technology

Integrates IP65-rated core waterproof technology. The aluminum housing is constructed of high-strength alloy, anodized and hardened, and equipped with a waterproof silicone seal and waterproof cable connector, providing excellent waterproof, corrosion-resistant, and rust-resistant properties.

YGS Waterproof Electromagnetic Magnetic Lock with Single Door-1763623998664378 10

Signal Feedback

Suitable for use in high-security or access control environments, this function uses a built-in sensor to detect the lock bolt position and simultaneously output a locked/unlocked dual-state signal. This function supports integration with access control systems. If the door is detected to be improperly locked or subjected to unusual external force, an alarm will be triggered, enabling remote, real-time monitoring of the door status and coordinated security protection.

Product Display

DW258M Without signal

DW258ML With signal

Broad Applicability

The YGS-DW single-door electromagnetic lock is designed for single-leaf doors in homes and offices, and is suitable for outdoor and semi-outdoor locations (such as corridors, balconies, courtyards, and outdoor dining areas). It features a mini lock body with an adsorption plate and L-shaped or U-shaped bracket, resulting in a simple and space-saving design. Its waterproof construction and anti-residual magnetism design significantly reduce maintenance costs, offering both high cost-effectiveness and easy installation. An optional signal feedback function is available.

1 (12)

2 (11)

3 (13)

Product parameters

Product Specifications
Operating voltage	Working current	Pull	Size）	Weight	Pieces per Carton、PCS/CTN	Carton size	Product Color
DC 12V	460mA±5%	280kg（617 lb)±10%	lock body: 238x47x27mm Iron Block: 182x38x13mm	24.9 KG	12 pcs	290270197	customized according to requirements
DC 24V	230mA±5%

Material Characteristics
	Electromagnetic Lock case	Electromagnetic Lock Mounting Strip	Electromagnetic Lock Magnet	Electromagnetic Lock Coil	Electromagnetic Lock Suction Plate
Material	Aluminum alloy/6063A bar	Aluminum alloy/6063A bar	Silicon steel sheet (0.5 mm single sheet)	Copper	Iron
Surface treatment	Anodized brushed silver	Anodized brushed silver	Electroplated environmentally friendly zinc	/	Electroplated environmentally friendly zinc

Manufacturing Information
Delivery	7–30 days for samples; 4–8 weeks for bulk production
Quality control process	(OQC)Incoming Quality Control (IQC)、 In-Process Quality Control (IPQC) 、Final Quality Control (FQC)、 Outgoing Quality Control (OQC)
MOQ	Typically 500–1,000 units for standard OEM orders (flexible for long-term partners).

Product Certification
Certification	CE-LVD	CE-EMC	ROHS
Customer certification requirements	1. Existing certification: The certified products can be converted into the brand and model of the customer by the certification center through the form of filing.
	New certification: The customer proposes the certification type, and we provide samples to apply for the certification process to the certification center. (the following certifications can be met: CE, ROHS, WEEE, CB, FCC, REACH SVHC, etc.

Distinctive Edge
Flame retardant grade	Operating Temp	Surface Temp	NSS Salt spray time/level	Lock status signal	Anti-reverse power protection
V-0	﹣25℃—﹢55℃	Environment temperature+≤20°C	48H＞7grade	Signal Output (NO,NC,COM)	Anti-reverse polarity diode

Get in touch with us

We warmly welcome OEM partners and industrial users who require customized application for special project requirement.
