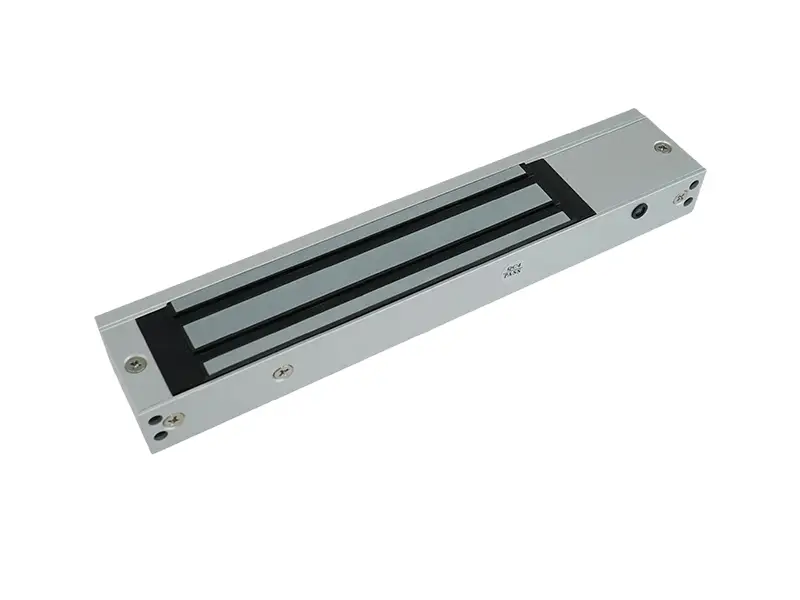

High Security Surface Mounted Electromagnetic Door Lock For Single Door Access Control (200kg)YGS

Product description

The YGS-DE conventional electromagnetic lock features a high-strength aluminum alloy casing with anodized surface treatment, which is wear-resistant and corrosion-resistant. The lock body is treated with electroplating to ensure long-term durability and stable performance.The electromagnetic lock has a static tensile strength of ≥272kg x 84%.

L-shaped / Z-shaped brackets are available to accommodate various door types (wooden, fire-rated, glass, and sliding doors), offering high compatibility with various door types. The silicon steel plate electromagnetic core and epoxy resin potting process ensure efficient magnetic attraction and stable operation in various daily environments. It supports optional signal configuration for integration with the premises.

Product Features

Broad Applicability

The YGS-DE conventional single-door electromagnetic lock is commonly used on single doors in small locations to manage access to limited areas. When used in conjunction with a YGS access control system, it enables authentication (card/password) to authorize entry and achieve personnel flow management.The working current is ≤250mA (DC12V/24V), the built-in surge absorber achieves rapid demagnetization within 0.5 seconds after power failure, and the magnetic structure has a silent design without mechanical collision sound, making it suitable for use in high-flow and silent environments.
