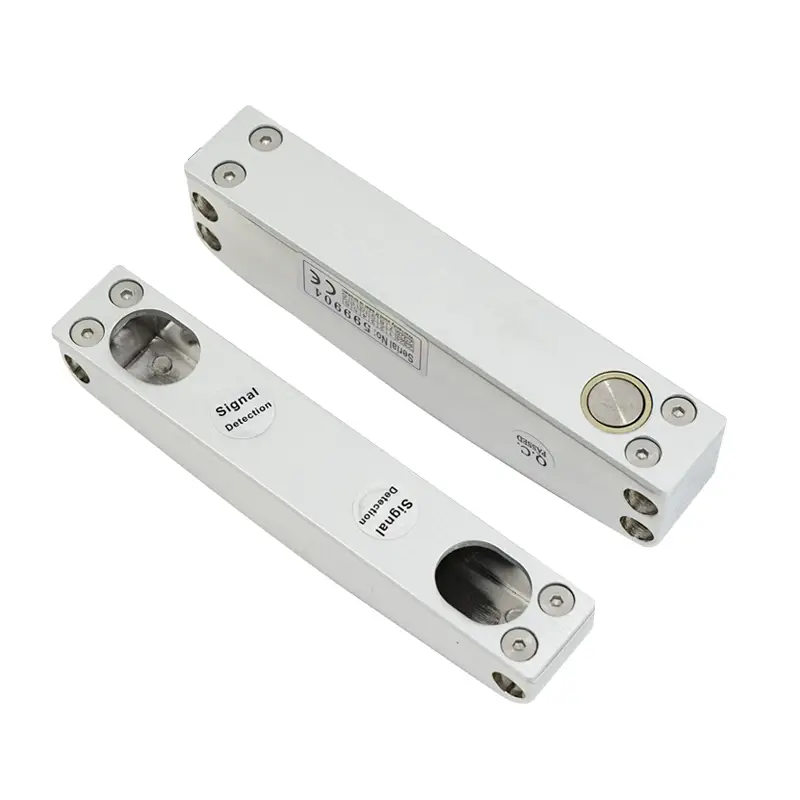

2-Wire Electric Bolt Lock
Glass door electric bolt lock
The YGS-CC2S is a surface-mounted electric bolt lock designed specifically for glass door applications, offering easy installation on both frameless and framed glass doors. Constructed from durable zinc alloy with an electroplated finish, it ensures reliable performance in commercial environments.
Operating on a wide 12–24V DC input, it features a startup current of 1A (±10%) and a continuous draw of 120mA (±10%). The lock supports door contact signal output and a configurable delay-lock function, enabling intelligent integration with access control systems for automated entry management.
Product Features
CC2S
Broad Applicability
CC2S two-line low temperature band delay type electric plug lock, can be used forwooden door, glass door, metal door, fire door, is a lock suitable for low temperatureenvironment, can be used with access control system, building intercom and other equipment.
Product parameters
|
Parameter Description |
|||
|
Working current |
Start 1A±10%, continuous work 150mA±10% |
Signal output |
COM/NO |
|
Panel dimensions |
Length 204x width 30x thickness 3 (mm) |
Delay function |
0-3-6 seconds adjustable |
|
Decorative panel dimensions |
Length 208x width 32x thickness 0.7 (mm) |
Applicable door type |
wood door, glass door, metal door, fire door |
|
Embedded dimensions |
Length 126x width 25x thickness 32 (mm) |
Box size |
255*58*60MM |
|
Keyhole size |
length 14mm diameter 15mm |
External box dimensions |
39.5*28*32.5CM |
|
Working voltage |
DC10-24V |
Packaging size |
30 pieces per box |
